Feature #10949

closed

Quansheng UV-K5 - No way to program scan settings.

Added by Jed Savage over 1 year ago. Updated over 1 year ago.

Status:
Not a bug
Priority:
Normal
Assignee:
-
Category:
-
Target version:
-
Start date:
11/15/2023
Due date:
% Done:

0%

Estimated time:
Chirp Version:
next
Model affected:
Quansheng UV-5K
I read the instructions above:
Yes

Description

The UV-5K has two scan banks that can be setup through the vendor provided programming software. Currently, the "Skip" field doesn't allow you to enter anything - it's just empty. Using chirp to program a uv-k5 will result in not being able to scan anything because there is no way to indicate which channels belong to which bank or no bank (skip).


Files

Quansheng_UV-K5_ScanList_1.png (63 KB) Quansheng_UV-K5_ScanList_1.png Jim Unroe, 11/16/2023 03:04 AM
Quansheng_UV-K5_ScanList_2.png (54.1 KB) Quansheng_UV-K5_ScanList_2.png Jim Unroe, 11/16/2023 03:05 AM
Export - Quansheng_UV-K5_20230521(factory #1).csv (1.54 KB) Export - Quansheng_UV-K5_20230521(factory #1).csv Exported to CSV to show no Extra Fields Jed Savage, 11/17/2023 07:28 AM

Updated by Jim Unroe over 1 year ago

Are you sure? There are 2 places where you can access the Scanlists setting which is used to select which scanlist(s) a memory should be included in. See attached screen captures.

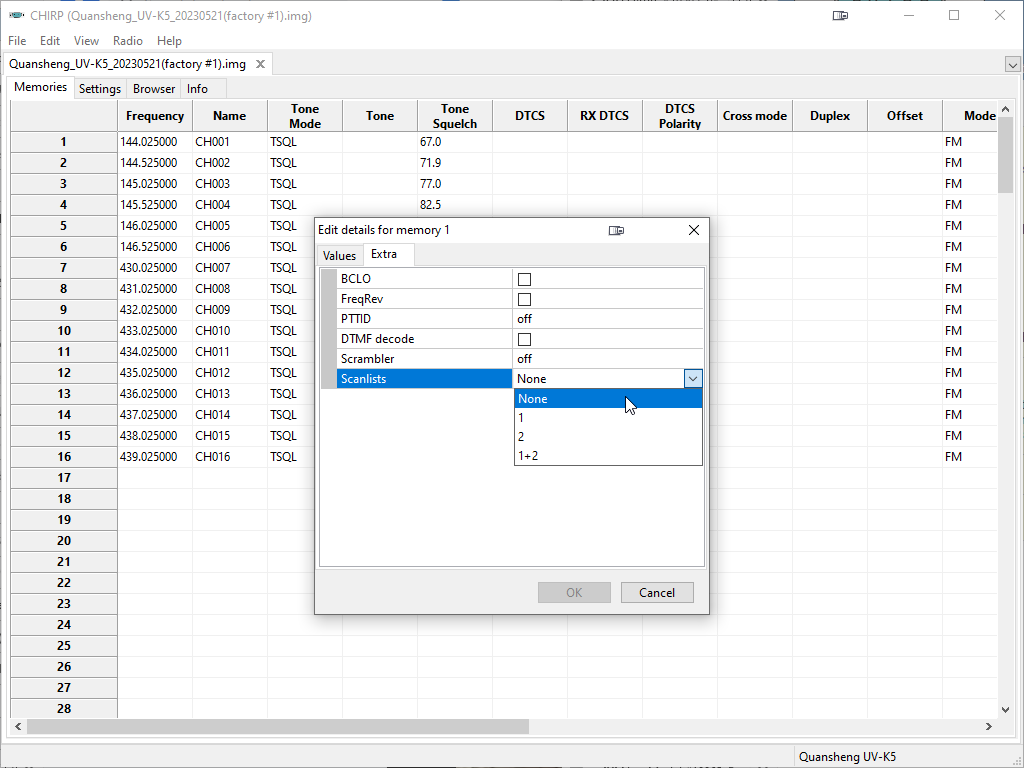

1a. Right-click a channel row
1b. Choose Properties from the drop down list
1c. Select the Extra tab

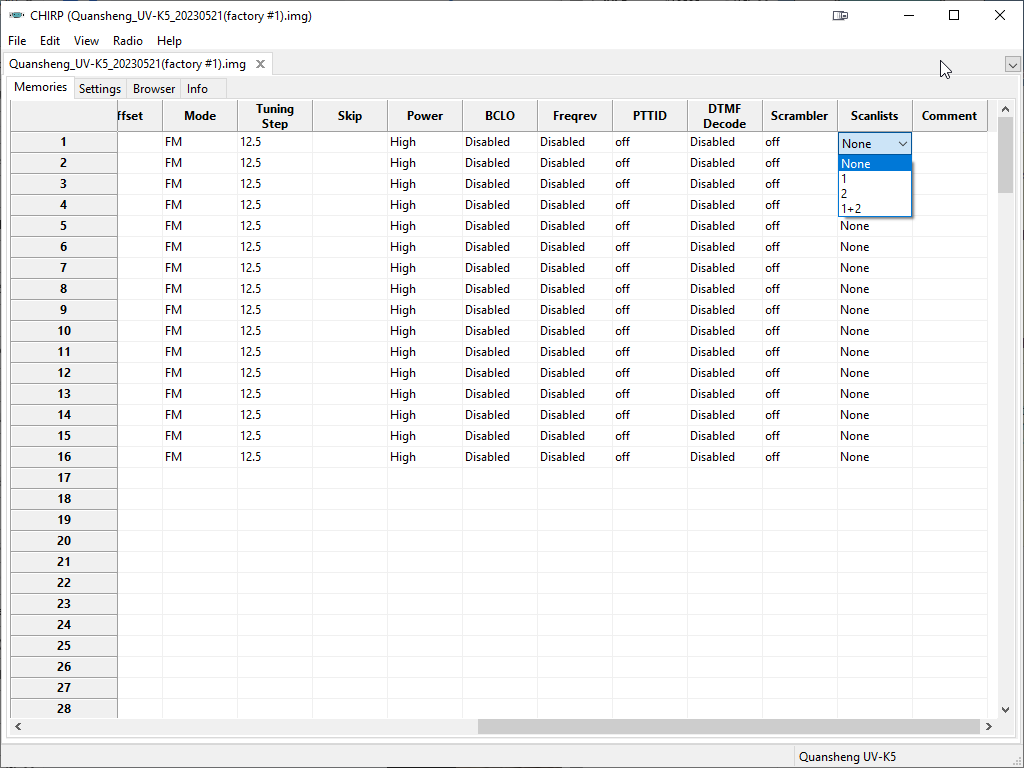

2a. Click View in menu bar
2b. Enable Show extra fields setting
2c. Use the horizontal scroll bar scroll to scroll the spreadsheet style memory window the right until the Scanlists column appears

Pro tip: By highlighting multiple memory rows prior to step 1a, method 1 allows you to set common settings of more than one memory row at the same time.

Actions #2

Updated by Jed Savage over 1 year ago

You are correct. I didn't notice the extras tab when I was messing about with it - I was using mostly CSV import/export. Thank you. It does look like the extra columns do not get exported to CSV and I'm assuming there's no way to import them through CSV either then? Should I open a new issue for this?

Actions #3

Updated by Jim Unroe over 1 year ago

Jed Savage wrote in #note-2:

You are correct. I didn't notice the extras tab when I was messing about with it - I was using mostly CSV import/export. Thank you. It does look like the extra columns do not get exported to CSV and I'm assuming there's no way to import them through CSV either then?

The CSV file is intended to be used for only the settings that are common amongst most radios. The Scanlists setting is not one of these settings.

It is CHIRP's native IMG file that is used to store the full range of settings for a particular radio model.

Should I open a new issue for this?

No

Actions #4

Updated by Jed Savage over 1 year ago

Is there another way to import those extra columns when you have a large list? If not, please consider adding a way to import features that are model specific. manually editing works for small lists but when you get into hundreds of channels it’s too time consuming.

Actions #5

Updated by Dan Smith over 1 year ago

Yep, Jim is right. CSV is the interchange format, the "lowest common denominator". You can import (or copy/paste) from a UV-K5 image to get channels from one radio into others, and doing it that way will copy across the radio-specific settings you're looking for. File->Import works from a .img file, and/or you can just open it and copy/paste from your reference image tab into the tab for another radio. That's what you're looking for right?

Actions #6

Updated by Jed Savage over 1 year ago

I don't already have a UV-K5 radio with the frequencies in them, I have a CSV file.

Actions #7

Updated by Dan Smith over 1 year ago

You know you can set these values for any number of memories at once right? Like if the first 50 memories need to be in one set of scanlist configs you can select all those rows, edit properties on them, change the scanlists and it will apply just that change to all of them at once.

Actions #8

Updated by Jed Savage over 1 year ago

Ok, I can make that work. I thought it would update all the extra settings instead of only the one I make a change to. Thank you.

Actions #9

Updated by Dan Smith over 1 year ago

  • Status changed from New to Not a bug

This is covered here, FWIW: https://youtu.be/9UgJjwaXlrY?t=623

So, I'm going to mark this as not-a-bug now since the original request is already implemented and we're squared away on the bulk edits.
