Bug #8209

open

TYT TH-9800 Plus No Setting Options After Factory Code Entered On Radio For Expanded Trans Freqs

Added by Ray Torella about 4 years ago. Updated almost 4 years ago.

Status:
New
Priority:
Normal
Assignee:
-
Category:
-
Target version:
-
Start date:
08/26/2020
Due date:
% Done:

0%

Estimated time:
Chirp Version:
daily
Model affected:
(All models)
Platform:
Windows
Debug Log:
I read the instructions above:

Description

TYT TH-9800 comes with a code to perform freq mod. After restart of TYT, expanded trans freqs work 100%. However, when uploading radio to CHIRP, the settings tabs are blank screens with no options. Reset TYT back to Ham Band only and CHIRP settings available again.

Files

Download all files
th9800fsFreqs.png (30.4 KB) th9800fsFreqs.png Jony Forester, 12/03/2020 11:12 PM
TYT_TH-9800_20201204.img (63.9 KB) TYT_TH-9800_20201204.img Jony Forester, 12/03/2020 11:12 PM
th9800.py (26.5 KB) th9800.py Jony Forester, 12/03/2020 11:12 PM

Related issues 1 (0 open — 1 closed)

Related to Bug #7799: TYT-9800 Plus Quad Band No Settings Options. Only a blank areaClosedJim Unroe04/13/2020

Actions
Actions
Copy link
 #1

Updated by Jony Forester almost 4 years ago

The same for me eiter on Win or Ubuntu.

Actions
Copy link Download all files
 #2

Updated by Jony Forester almost 4 years ago

Reseted the radio to the factory default setings.

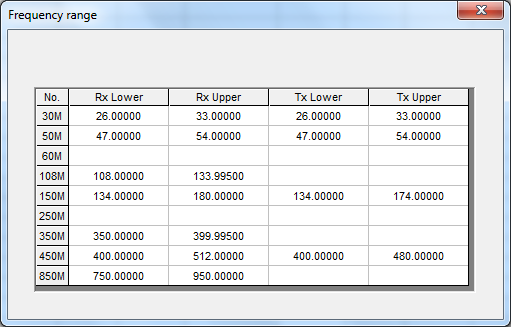

I attached screenshot bandlimits in original TYT software.
When read with chirp daily "CHIRP daily-20201121" getting the same "no settings" tab.
In both Windows 7 and Ubuntu Linux.

Also I attaching the IMF file saved from that read.

I hope it helps.

Probably I can do some diagnostics at my side (I have some expierence in programming).

I tried to change also bandlimits in driver file, but it does not helped either.

Attached also modified driver file.

Actions
Copy link
 #3

Updated by Jony Forester almost 4 years ago

Possible duplicate #7799

No, not a duplicate; but the issue here is discussed in a note there. (AE6YN)

Actions
Copy link
 #4

Updated by Jony Forester almost 4 years ago

Digged a bit more and came to these: #2937 and #3367 and played a bit more:

Used this frequency band limit settings in driver/module file:

        rf.valid_bands = [(26000000,  33000000),
                          (40000000,  71000000),
                          (108000000, 180000000),
                          (220000000, 260000000),
                          (350000000, 399995000),
                          (400000000, 512000000),
            (750000000, 950000000)]

Opened with load module when developer functions enabled.

Finaly got some half good results i.e. when reading radio settings tab was empty, but when saving the file and opening it in Chirp the settings tab was open and ready and I can program it back to radio.
