CHIRP

Synopsis

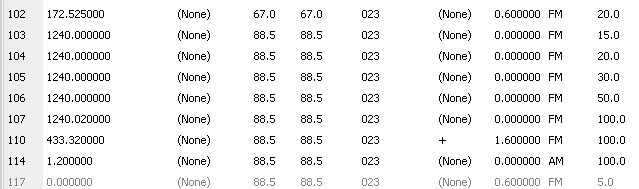

Only 5 and 6.25 tuning steps are read properly and everything above is shifted as follow: 10-15, 12,5-20, 15-25, 20-30, 25-50, 30-100. Tuning steps 50 and 100 remain unrecognized and memory cell missing (no memory number, location missing). Step 8.33 (AM air band) is shown as 10 and tuning step 9 (AM broadcast) is displayed as 12,5. Full memory breakdown as follow:

Broadcast band LW-MW (100kHz - 1701kHz) AM mode
Input - Read
5 - 5
6.25 - 6.25
9 - 12,5
10 - 15
12,5 - 20
15 - 25
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

Short wave band (1070kHz - 30000kHz) USB mode
Input - Read
5 - 5
6.25 - 6.25
10 - 15
12,5 - 20
15 - 25
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

Low VHF band (30-87MHz) FM mode
Input - Read
5 - 5
6.25 - 6.25
10 - 15
12.5 - 20
15 - 25
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

FM broadcast band (87.5-108MHz) WFM mode
Input - Read
5 - 5
6.25 - 6.25
10 - 15
12.5 - 20
15 - 25
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

Air band (108-137MHz) AM mode
Input - Read
5 - 5
6.25 - 6.25
8.33 - 10
10 - 15
12,5 - 20
15 - 25
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

VHF mid band (137-174MHz) FM mode
Same pattern as VHF low band

VHF TV broadcast band (174-230MHz) FM mode
Same pattern as VHF low band

VHF high band (230-400MHz) FM mode
Same pattern as VHF low band

UHF band (400-470) FM mode
Same pattern as VHF low band

UHF TV broadcast (470-861MHz) FM mode
Input - Read
10 - 15
12.5 - 20
20 - 30
25 - 50
30 - 100
50 - unrecognized, memory cell missing (no memory number, location missing)
100 - unrecognized, memory cell missing (no memory number, location missing)

23cm and cellular band (862 - 1300MHz)
Same pattern as UHF TV broadcast band
