Bug #11238
openfirmware not supported
0%
Description
**I received my new Quansheng UV-5r plus.
I used CHIRP version 20240312 and i get message FIRMWARE NOT SUPPORTED.
Loaded new Chirp along with new radio. My cable has a CH3040 chipset but when it comes to communcating with radio it states firmware not supported.
Even managedto get CH341SER file and it still does not seem to wish to communicate between radio and PC.
**
Files

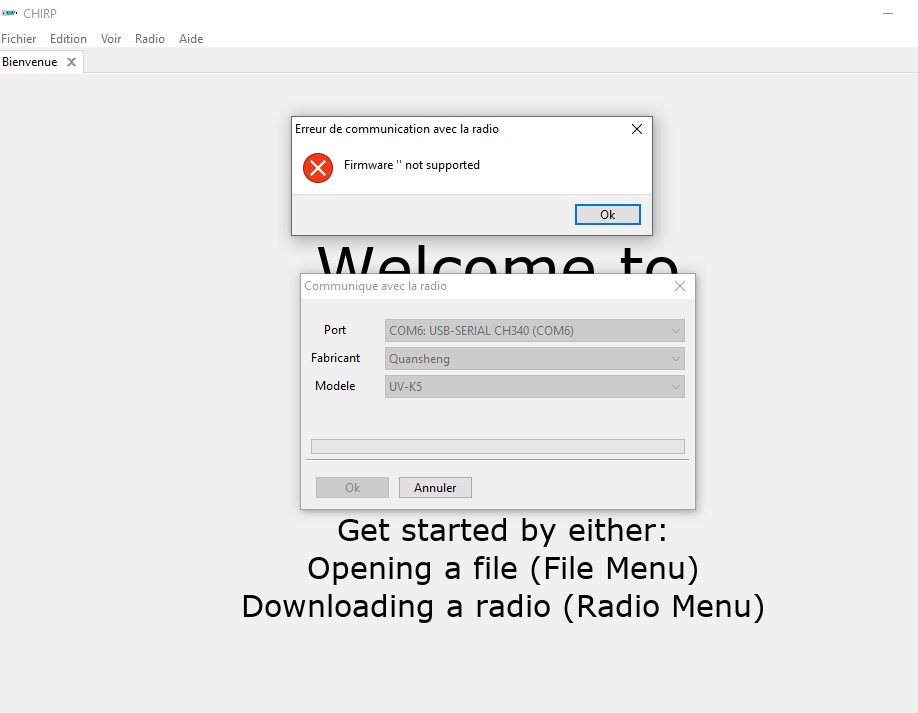

| error message .jpg (64.5 KB) error message .jpg | |||
| chirp_debug-zx381gd3.txt (3.29 KB) chirp_debug-zx381gd3.txt | |||
| chirp_debug-owlkryoq.txt (3.41 KB) chirp_debug-owlkryoq.txt | |||
| uvk5_k5_4.00.py (68.1 KB) uvk5_k5_4.00.py |
Updated by Dan Smith 9 months ago
Per the IssueInstructions you indicated that you read, we need a debug log in order to help you. See How_To_Report_Issues.
Updated by Pierre Gagnon 9 months ago
- File chirp_debug-zx381gd3.txt chirp_debug-zx381gd3.txt added
I include the file.
Thanks you in advance.
Updated by Pierre Gagnon 9 months ago
Display is normal.
all is normal.
But i get again the error.
thanks you
Pierre Gagnon
Updated by Dan Smith 9 months ago
- Related to Bug #11212: recent uv-k6 oem firmware: Download from radio gives early fatal failure added
Updated by Jim Unroe 9 months ago
- File chirp_debug-owlkryoq.txt chirp_debug-owlkryoq.txt added
- File uvk5_k5_4.00.py uvk5_k5_4.00.py added
Attempting to download from my Quansheng UV-5R Plus which I have download from before, also fails with a "Firmware 'k5_4.00.01' not supported" (log attached). Either the check for the firmware version is new, or the firmware version for the UV-5R Plus was changed/removed.
I don't know if the '4.00' prefix in the driver is missing the "k5_" or not so I added the 'k5_4.00.' prefix to the attached demo driver and it works for my radio which was acquired in October 2023. Follow these instructions to give it a test: LoadingTestModules
