New Model #11100
closedBaofeng UV-17M - UV-17 with AM Aircraft band
0%
Description
I just got a Baofeng UV-17M - the model number is marked on a label under the battery pack. The radio works with Chirp as a "UV-17Pro" - I was able to download the factory setup and copy and upload a set of frequencies copied from a UV-68. The problem is that CHIRP doesn't recognize that AM is a valid reception type for this radio, nor does it recognize the air band frequencies. When I try to copy those, I get an
Files

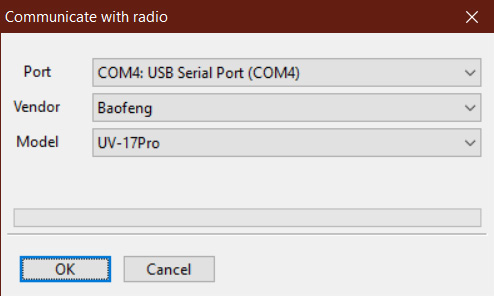

| Chirp-1.jpg (46.7 KB) Chirp-1.jpg | Chirp download page - download is OK | ||

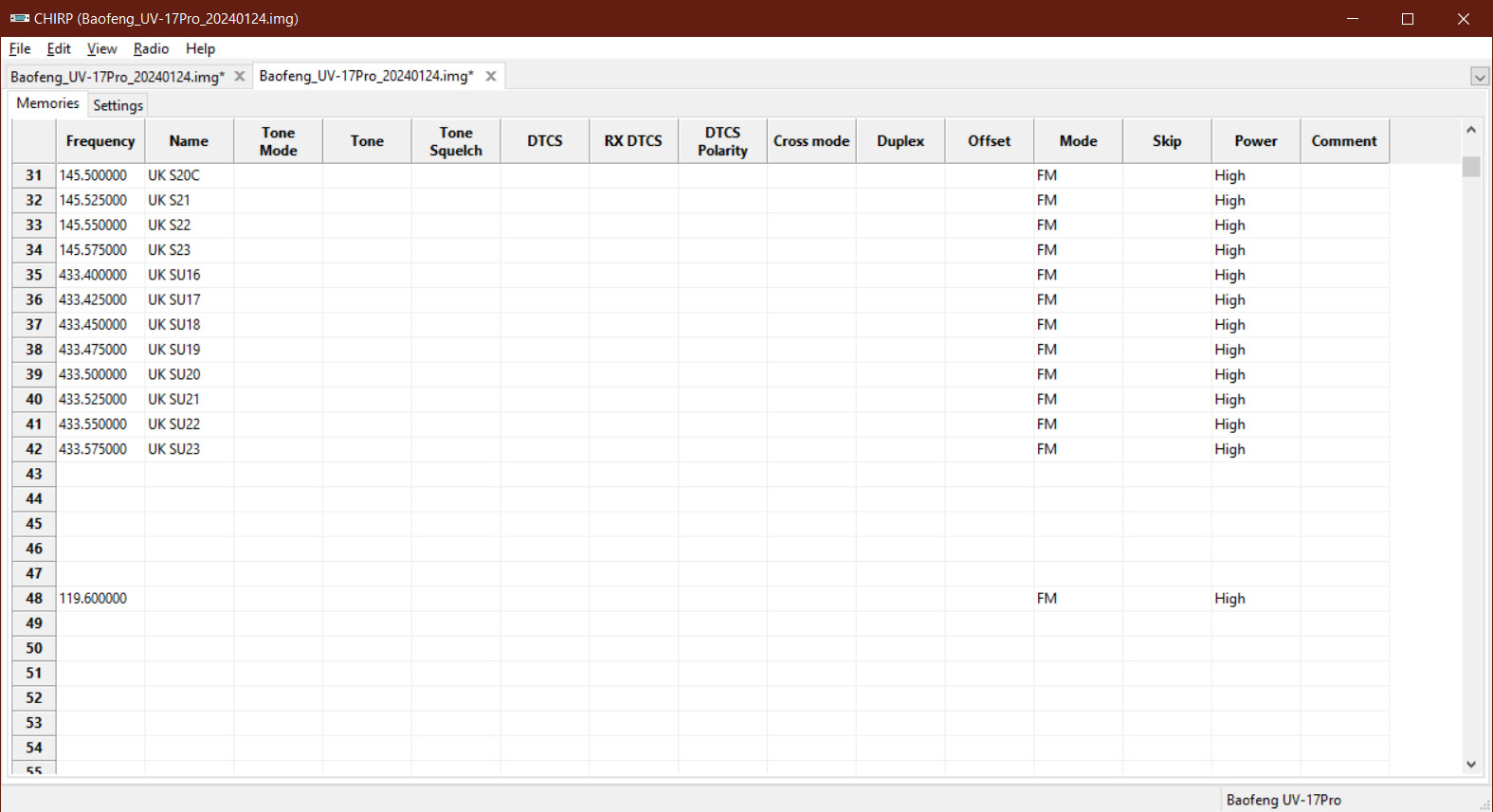

| Chirp-2.jpg (234 KB) Chirp-2.jpg | Channel list after download - note channel 48 shows FM | ||

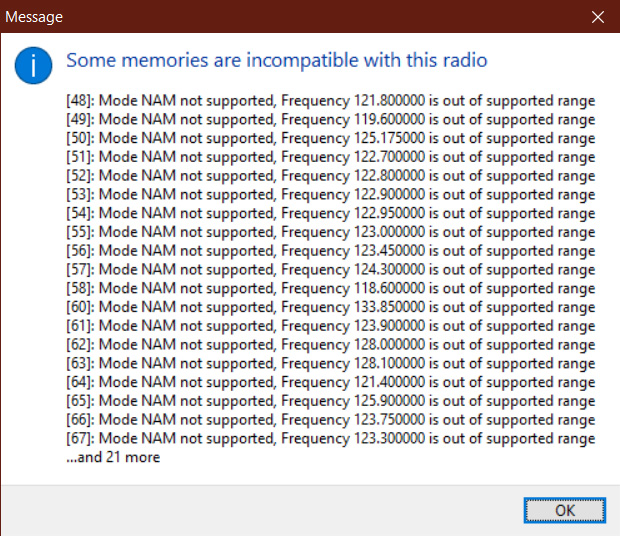

| Chirp-3.jpg (277 KB) Chirp-3.jpg | Error list on attempt to download AM Aircraft freqs | ||
| chirp_debug-afxth1i0.txt (622 KB) chirp_debug-afxth1i0.txt | Chirp debug log | ||

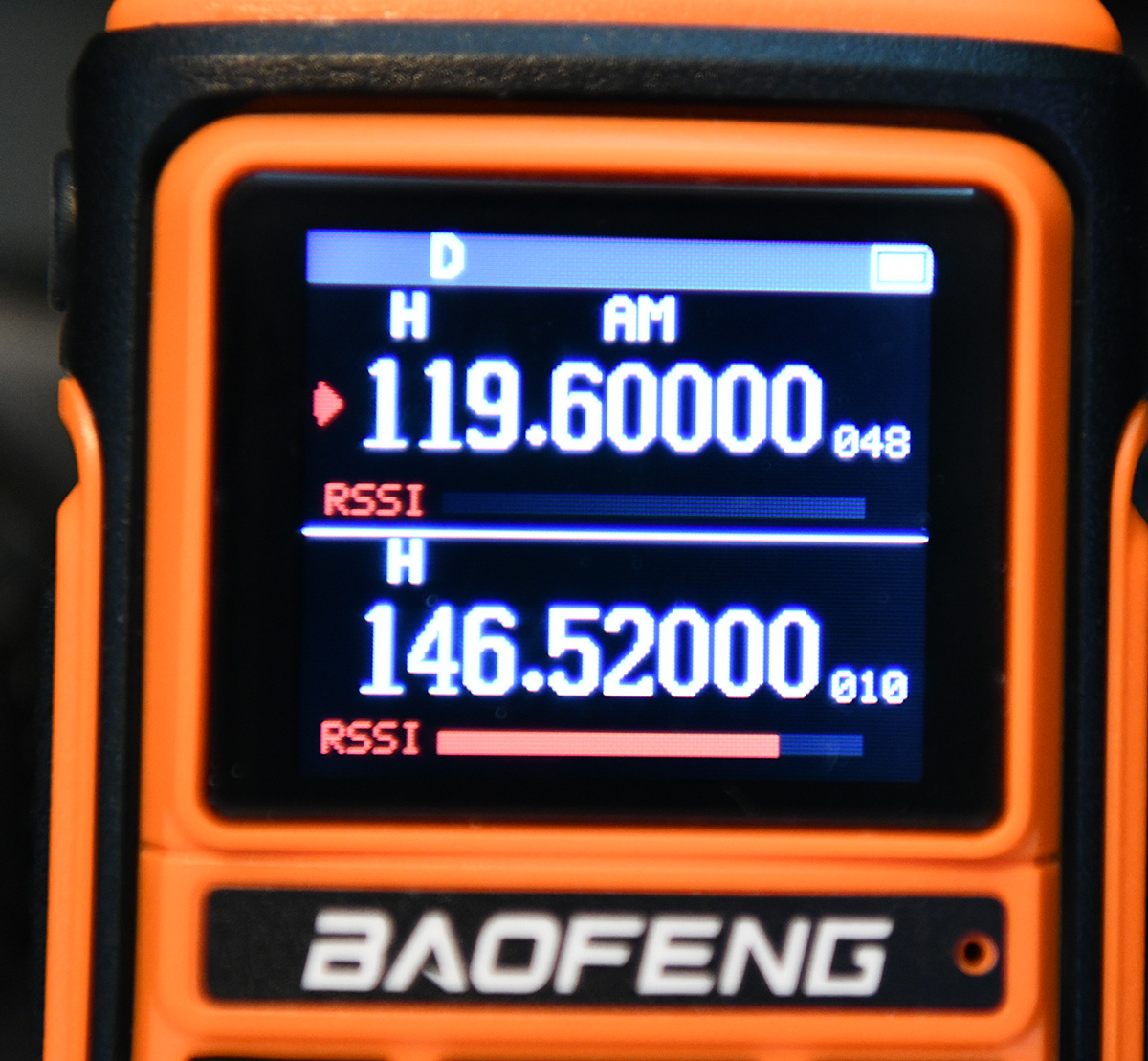

| MB8_0559.JPG (405 KB) MB8_0559.JPG | Baofeng display showing AM frequency in channel 48 | ||

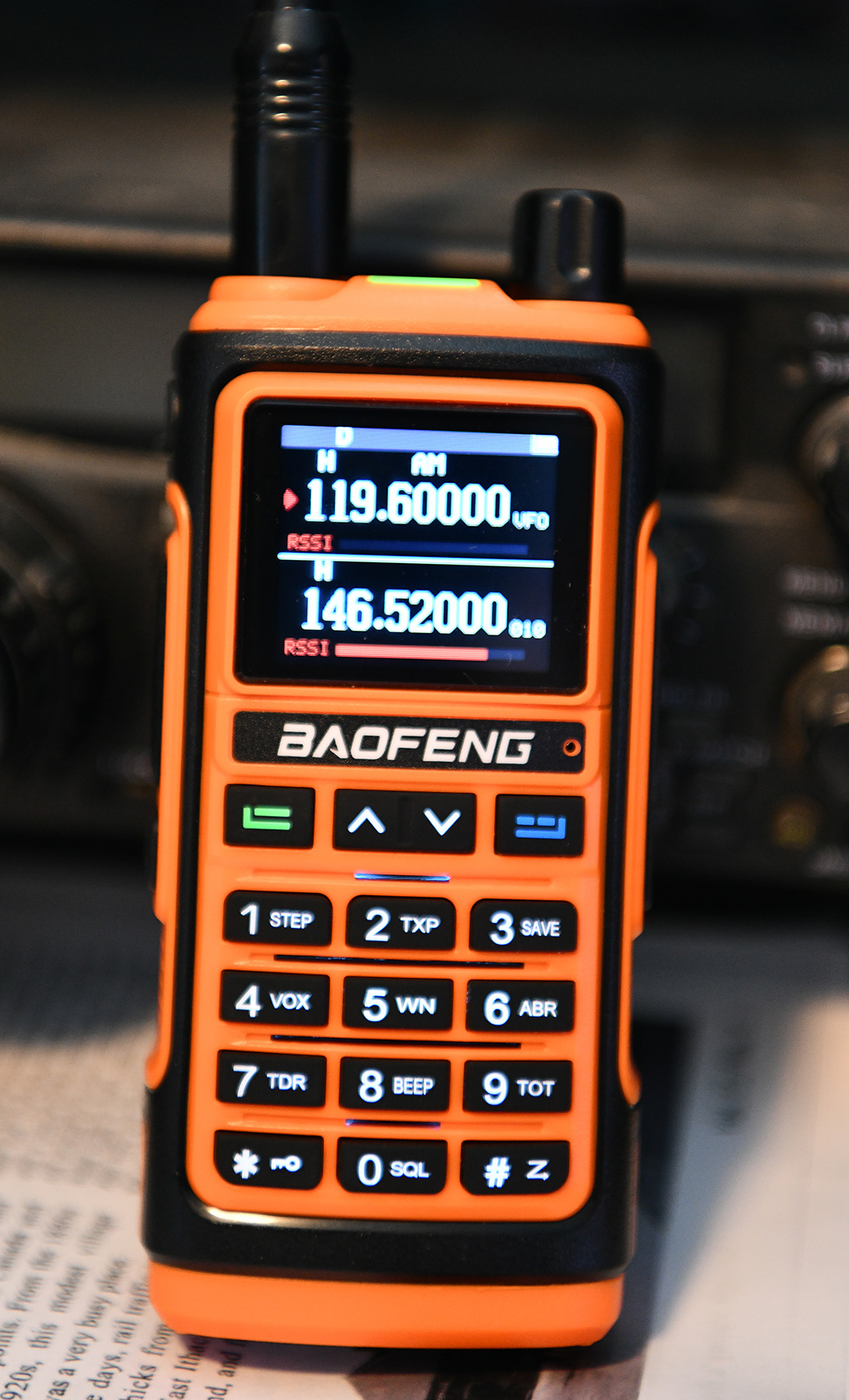

| MB8_0558.JPG (461 KB) MB8_0558.JPG | Baofeng UV-17M radio | ||
| 2024-01-24-Baofeng_UV-17Pro_WB2JWD.img (33.1 KB) 2024-01-24-Baofeng_UV-17Pro_WB2JWD.img | Chirp image of radio | ||

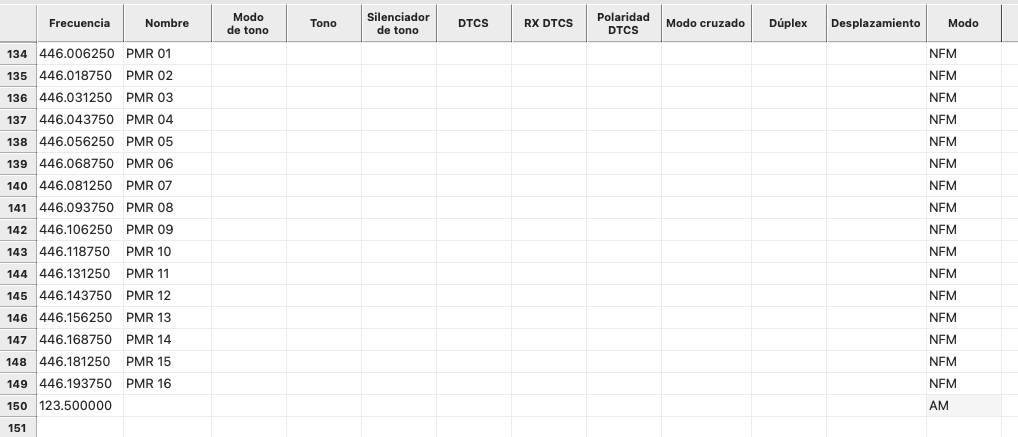

| Captura de pantalla 2024-07-17 a las 14.34.21.png (70.9 KB) Captura de pantalla 2024-07-17 a las 14.34.21.png | Air band channel imported (123.500000 AM) | ||

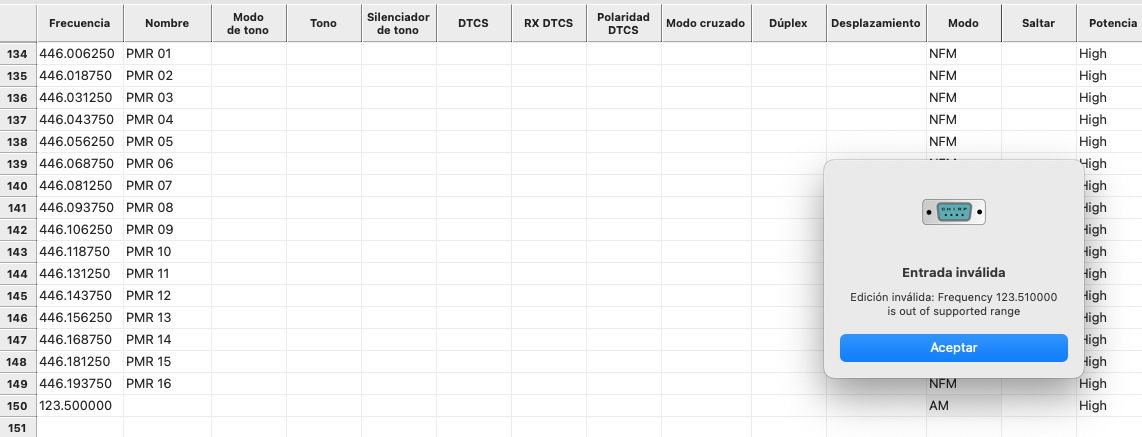

| Captura de pantalla 2024-07-17 a las 14.34.40.png (120 KB) Captura de pantalla 2024-07-17 a las 14.34.40.png | Unable to edit that same channel |
Updated by Mike Brown 10 months ago
... error message (attached) reading that NAM is not supported and the air band frequency is out of range. Also note that while Chirp did download channel 48 with the correct frequency, it stores it as FM, not AM.
Updated by Mike Brown 10 months ago
OK, here are the valid band ranges:
AM: 108-136MHz (RX)
VHF1:136-174MHz (TX & RX)
VHF2: 200-260MHz (TX&RX)
UHF: 400-480MHz (TX & RX)
UHF:350-390MHz (RX)
UHF:480-520MHz (RX)
Updated by Francis Perea 4 months ago
- File Captura de pantalla 2024-07-17 a las 14.34.21.png Captura de pantalla 2024-07-17 a las 14.34.21.png added
- File Captura de pantalla 2024-07-17 a las 14.34.40.png Captura de pantalla 2024-07-17 a las 14.34.40.png added
Hi all,
I've just the same problem with exactly that model Baofeng UV-17M.
I'd also ask for including the exact range of frequencies for this model.
I'm able to store a channel on the unit and it will be recovered by Chirp but I'm unable to create new channels or edit those imported within the "incorrect" range of frequencies directly in Chirp as you can see in the pictures.
Thanks a lot in advance for all your efforts and time.
Updated by Maxime Guillaud 20 days ago
The recently committed UV-17R-Plus profile seems to work well with the UV-17M. I was able to upload and download images including AM airband frequencies.
