New Model #8531

closed

Retevis RB-15 / RB-615

Added by Tony Ling almost 4 years ago. Updated over 2 years ago.

Status:

Closed

Priority:

Normal

Assignee:

Category:

-

Target version:

Start date:

12/08/2020

Due date:

% Done:

100%

Estimated time:

Equipment Loan/Gift Offered:

Yes

I read the instructions above:

Description

The RB-15 is a compact FRS 2W radio.
The RB-615 is the 0.5W PMR European variant.
Each have their own Windows programming application. By the look of these, the radios can support duplex working.
It would be nice if CHIRP could open them up so they could be used as a super cheap simple 70cms handheld.

Files

Download all files

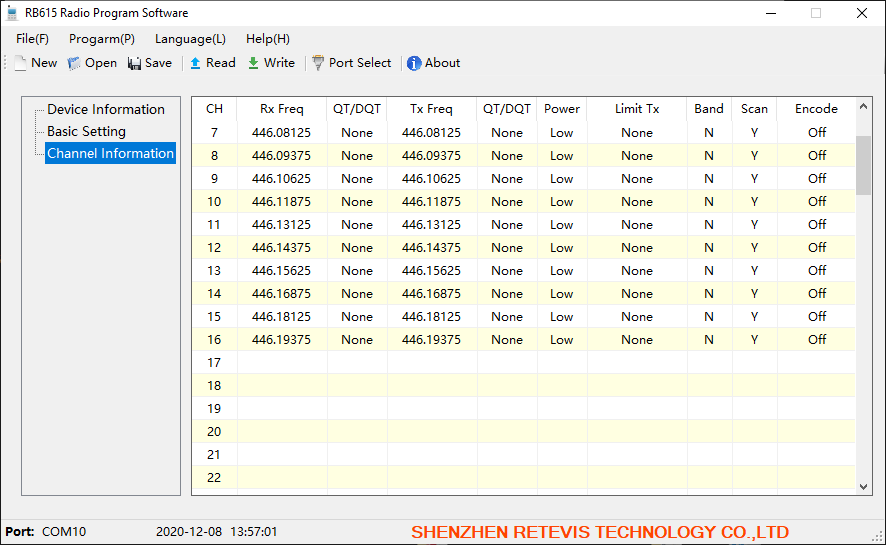

RB-615 Software Screenshot Ch.PNG (37 KB) RB-615 Software Screenshot Ch.PNG		Tony Ling, 12/08/2020 06:36 AM
Retevis_RB15.img (2.06 KB) Retevis_RB15.img	CHIRP Radio Images (*.ing) file from RB15	Jim Unroe, 07/22/2022 05:59 PM
Retevis_RB615.img (2.07 KB) Retevis_RB615.img	CHIRP Radio Images (*.ing) file from RB615	Jim Unroe, 07/22/2022 05:59 PM

Related issues 2 (0 open — 2 closed)

Actions

#1

Updated by Tony Ling almost 4 years ago

Under further research, I have found that the RB-615 and the RB-15 software appear identical.
At least, my PMR446 RB-615 can be read by and written to by the North American RB-15 software.

Actions

#2

Updated by Tony Ling almost 4 years ago

Retivis supply 'unlocked' software on request which allows these radios to operate between 400-480MHz at up to 2W.

Actions

#3

Updated by Bernhard Hailer almost 4 years ago

Status changed from New to Closed

Duplicates #6855. Please follow and post there. Thanks!

Actions

#4

Updated by Tony Ling almost 4 years ago

Closed on error.
The RB15 and RT15 are two separate radios.

Actions

#5

Updated by Jim Unroe almost 4 years ago

Status changed from Closed to Feedback

Tony Ling wrote:

Closed on error.
The RB15 and RT15 are two separate radios.

I agree.

Jim KC9HI

Actions

#6

Updated by Bernhard Hailer almost 4 years ago

Target version set to chirp-legacy

Oops, looks like I was a bit too thorough with my new year's cleaning efforts... My apologies!

Actions

#7

Updated by Jim Unroe over 2 years ago

Status changed from Feedback to In Progress
Assignee set to Jim Unroe

Retevis has donated a pair of radios to be used for development.

Jim KC9HI

Actions

Copy link Download all files

#8

Updated by Jim Unroe over 2 years ago

File Retevis_RB15.img Retevis_RB15.img added
File Retevis_RB615.img Retevis_RB615.img added

CHIRP Radio Images (*.img) files captured from each model while it was still in its "factory" state.

Jim KC9HI

Actions

#9

Updated by Jim Unroe over 2 years ago

Status changed from In Progress to Resolved
% Done changed from 0 to 100

Patched to add support for the Retevis RB15 and Retevis RB615 were submitted. Support will be in the next CHIRP Daily build following acceptance.

Jim KC9HI

Actions

#10

Updated by Jim Unroe over 2 years ago

Status changed from Resolved to Closed

Support will be in tomorrow's CHIRP Daily Build.

Jim KC9HI

Actions
