Bug #8527

open

Kenwood TK760G-1 Cannot read and program

Added by Ortan Roland almost 4 years ago. Updated almost 4 years ago.

Status:
Feedback
Priority:
High
Assignee:
-
Category:
-
Target version:
-
Start date:
12/07/2020
Due date:
% Done:

0%

Estimated time:
Chirp Version:
daily
Model affected:
TK760G
Platform:
All
Debug Log:
I read the instructions above:

Description

Hello , i have a Kenwood TK760G-1 got a KPG-46 cable for it , the drivers are fine , so when im trying to read it in Chirp and i get an error : Incorrect model ID , got M7600, it not contains M7600
I came across a thread here "https://chirp.danplanet.com/issues/3349" , and applied the "tk760g.py" fix in developer mode but i get another error : The radio doesn't accept program mode
I tried to find some firmware files for this unit , but searched on everywhere and cannot find a single firmware, i thougt it will help...
I just dont know what else to do :(


Files

debug ( with custom driver ).log (29.9 KB) debug ( with custom driver ).log Ortan Roland, 12/08/2020 03:55 PM
debug ( without custom driver).log (27.5 KB) debug ( without custom driver).log Ortan Roland, 12/08/2020 03:55 PM
20201209_015212.jpg (1.09 MB) 20201209_015212.jpg Ortan Roland, 12/08/2020 03:55 PM
tk760g(m7600).py (54 KB) tk760g(m7600).py Hacked driver to recognize TK760G-1 Jim Unroe, 12/08/2020 06:01 PM
ERROR 52.JPG (167 KB) ERROR 52.JPG Ortan Roland, 12/08/2020 06:23 PM
Actions #1

Updated by Jim Unroe almost 4 years ago

  • Status changed from New to Feedback

It would assist if you would attach a debug.log file saved after trying to download from the radio without the custom driver. And another debug.log file saved after trying to download from the radio with the custom driver.

Jim KC9HI

Updated by Ortan Roland almost 4 years ago

Hello and thankyou for the reply , i have uploaded now the 2 debug files you asked one without custom drive and one with , also a picture with the back of the Kenwood TK760G

Actions #3

Updated by Jim Unroe almost 4 years ago

Ortan Roland wrote:

Hello and thankyou for the reply , i have uploaded now the 2 debug files you asked one without custom drive and one with , also a picture with the back of the Kenwood TK760G

Thank you for the debug.log files and the picture. They were all helpful.

First things first, I don't know what the changes were in the "custom" driver, but whatever they are, the driver does not communicate with your radio. So there is no need for you to mess with it any further.

The good news is the current driver does "talk" to your radio. The problem is that your radio responds to the request to begin cloning with the TYPE "m7600" and CHIRP expects the TYPE "M7600" (upperCASE "M").

So what would be nice would be if Pavel Milanes, CO7WT, (the driver author) would take on this issue and update this driver to support your radio. He would be more qualified to make the permanent changes necessary to support your radio.

In the mean time, I think I have hacked the driver so that if you load it as a "driver module", it will (I hope) recognize your radio. At least you can give it a try. I always recommend that you save the first successful download, unedited, as a CHIRP Radio Images (*.img) file to be kept in a safe place as a backup.

Let me know what happens.

Jim KC9HI

Actions #4

Updated by Ortan Roland almost 4 years ago

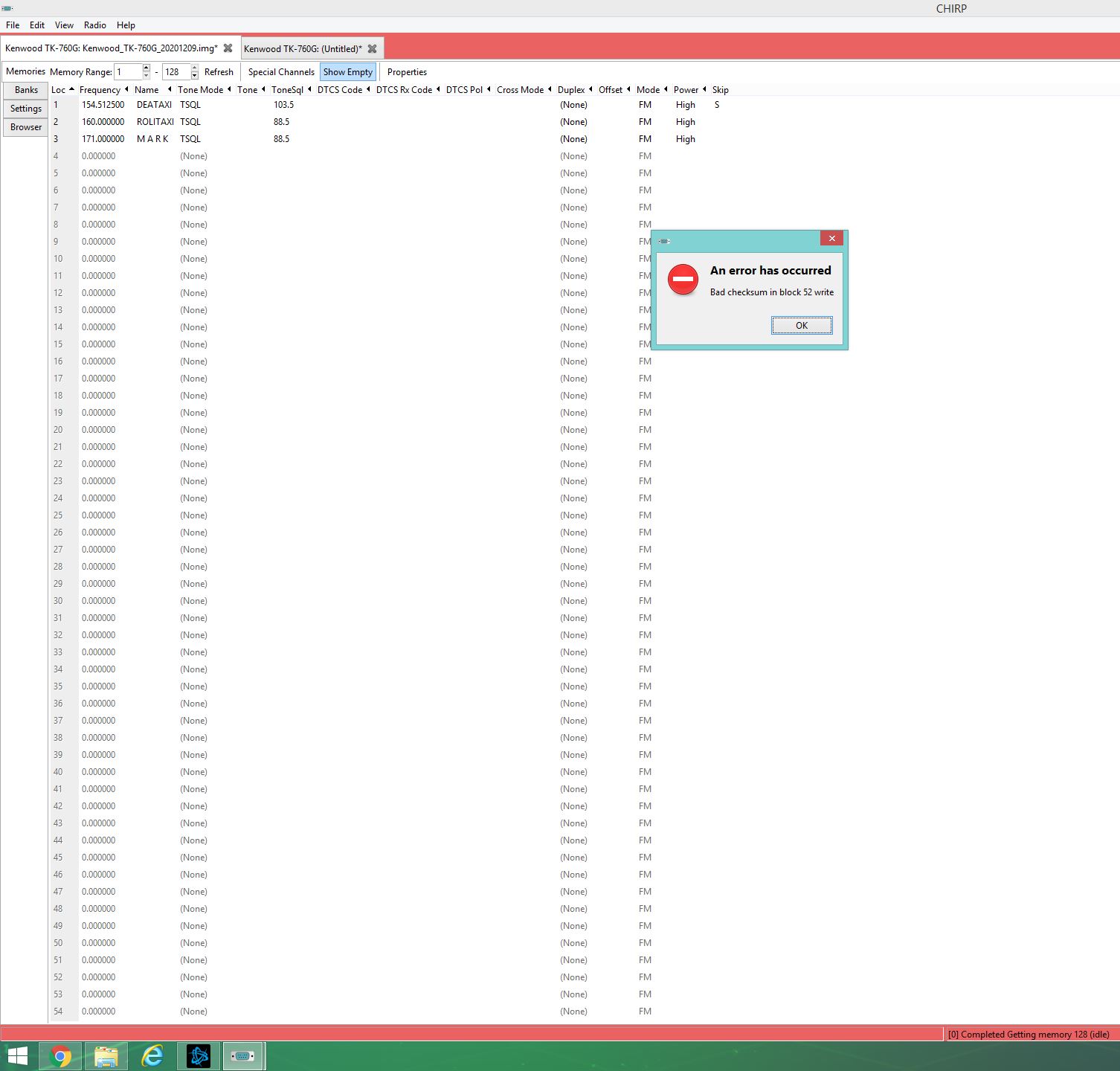

Hello sir ,the driver that you modified i confim indeed that it works, good job !!! , now i can connect to the radio , i can modify , but when i upload to the radio it gives me an error " Bad checksum in block 52 write "
But it does save the stuff that i add to the radio , is that error a problem or i can ignore it ?
Uploaded another picture with the error.

Actions #5

Updated by Jim Unroe almost 4 years ago

Ortan Roland wrote:

Hello sir ,the driver that you modified i confim indeed that it works, good job !!! , now i can connect to the radio , i can modify , but when i upload to the radio it gives me an error " Bad checksum in block 52 write "
But it does save the stuff that i add to the radio , is that error a problem or i can ignore it ?
Uploaded another picture with the error.

Hi Ortan,

I'm sorry, but I wouldn't have any idea what the issue is. I don't own or otherwise have any experience with using or programming commercial Kenwood radios. My recommendation would be to contact Pavel and see if he would take on this issue and make the required modifications to the current driver to properly support your radio. Load the downloaded driver into a text editor and you will find Pavel's email address at the top.

Jim KC9HI
