Bug #8119
openFTM-7250 BUG - AM MODE
0%
Description
Hello
A few days ago a Bug was corrected that did not allow the entry of the full range of the RX of this radio.
However, after the correction it appears that the AM mode option was not added in the configuration sheet.
Especially for the air band segment.
Files

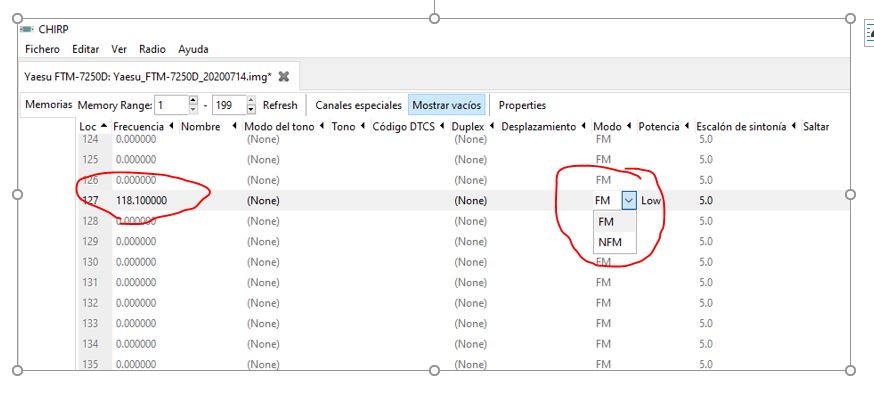

| CHIRP_BUG_AM.JPG (49.8 KB) CHIRP_BUG_AM.JPG | IMAGE OF THE BUG | ||
| Yaesu_FTM-7250D_20200724.img (63.9 KB) Yaesu_FTM-7250D_20200724.img | Downloaded image file with AM |
Updated by Rudolph Gutzerhagen over 4 years ago
looks like the reference is to Issue #8059 Yaesu FTM-7250D Frequency Range Error r7e8fde02da74
Updated by John Owens N6JSO over 4 years ago
The bug is that the "Mode" field only allows choices "FM" and "NFM", but also needs to allow "AM" to support receive-only channels such as the airband. Attached is an image file I downloaded from an FTM-7250DR which has 3 channels (197,198,199) that were manually saved on the radio and show as AM on the radio screen, but show "FM" in Chirp. Hopefully it saved the actual radio value so you can see what it's supposed to be.
Updated by Iain White over 4 years ago
Looks like a simple fix.
Change:
MODES = ["FM", "NFM"]
to
MODES = ["FM", "NFM", "AM"]
Updated by Felipe Hoffens over 4 years ago
Iain White wrote:
Looks like a simple fix.
Change:
MODES = ["FM", "NFM"]
to
MODES = ["FM", "NFM", "AM"]
This BUG must resolved ONLY in the AIR BAND. 108.000 to 136.999
I think that in other band´s dont work.
Updated by Rudolph Gutzerhagen over 4 years ago
Update: the issue is being investigated. A patch has been submitted that addresses the issue in your image. Further work is required to update the settings.
Updated by Felipe Hoffens over 4 years ago
Rudolph Gutzerhagen wrote:
Update: the issue is being investigated. A patch has been submitted that addresses the issue in your image. Further work is required to update the settings.
Thanks in advance!
I encourage you and congratulations for the great work that you do!
Updated by Felipe Hoffens about 4 years ago
Hi team!
Thanks for your development!
Have any news about this issue?
73´s
Felipe
CE3RMI
Updated by Rudolph Gutzerhagen about 4 years ago
the patch that was submitted unfortunately only dealt with the dropdown box presentation. I volunteered to work on the code to carry that change through. I had some success in identifying candidate memory locations and settings but things weren't clear enough to be sure. I don't have this radio, so working without hands on became too difficult to cycle through the steps quickly and reliably. As far as I understand, the driver that was submitted was only put forward with a very minimal amount of functionality, basically to get a set of FM frequencies up to the radio. At the moment, I am not actively working on this issue and I'm not aware of anyone else who is working on it.
