Bug #1733
closedIcom IC2100H channel alphanumeric display contents do not appear after CHIRP upload to radio
100%
Description
Chirp Ver0.4.0
Symptom:
Memory channels which were blank, do not show alphanumeric contents after programming & upload to the radio from CHIRP. All memory content appears correct (frequency, offset tones etc.) but only the numeral frequency is displayed not the alphanumeric name.
How to duplicate the problem:
Upload radio memory contents to CHIRP. Manually program a blank (unused) memory. Data may also be copied from another memory entry and pasted to the new memory location. The new or copied entry appears to be complete including the correct number and type of alphanumeric characters in the ‘Name’ column. Upload the new data to the radio. The newly programmed memory channel display shows the frequency in numerals only, the alphanumeric ‘NAME’ contents are not displayed.
Work Around:
Press the [(MONI)ANM] key for two seconds to select the alphanumeric indication for this memory channel. This must be done for each channel for which there is new alphanumeric content, even if the channel entry was copied then pasted from a previous record.
Notes:
Changes to the ‘Name’ data for any channel that previously displayed alphanumeric content are handled correctly.
Probable Cause?:
It’s likely a flag that requests the alpha content be used for a memory channel is not set when alpha content appears in the chirp ‘Name’ column for the first time.
Files
Updated by Jim Unroe over 10 years ago
Wayne,
Would you attach a .img file with two identical memories except one shows the "NAME" and the other one doesn't. Let us know which memory is which.
Jim KC9HI
Updated by Wayne Getchell over 10 years ago
- File IC2100h 04Jul14.img IC2100h 04Jul14.img added
- File IC2100h 30Jun14.img IC2100h 30Jun14.img added
Hi Jim
Here are two files. The IC2100h 30Jun14.img file and IC2100h 04Jul14.img. When uploaded to the radio the 30Jun image will only show numerals in memory entries 7,8,14, and 15. The 04Jul14 file when uploaded will show the alphanumeric data in those memory locations.
Updated by Wayne Getchell over 10 years ago
Hi Jim
Here are two files. The IC2100H 30Jun14.img file and IC2100H 04Jul14.img. When uploaded the 30Jun image will only show numerals in memory entries 7,8,14, and 15. The 04Jul14 file when uploaded will show the alphanumeric data in those memory locations.
Second reply to Jim KC9HI
Hi Jim
Well that process worked ok. It does however result in a programming procedure that is not as intuitive as one might like. I think that most users expect that when an alpha is entered into the name column it will automatically appear on the display. I believe it would be useful to tell users how to use the edit and especially the multiple memory edit alpha options as a ‘post process’ before uploading data to the radio.
I successfully unchecked the alphanumeric on several entries first individually and subsequently using the multiple memories edit approach. I verified the alpha status was removed by uploading to the radio and indeed the alpha was not displayed.

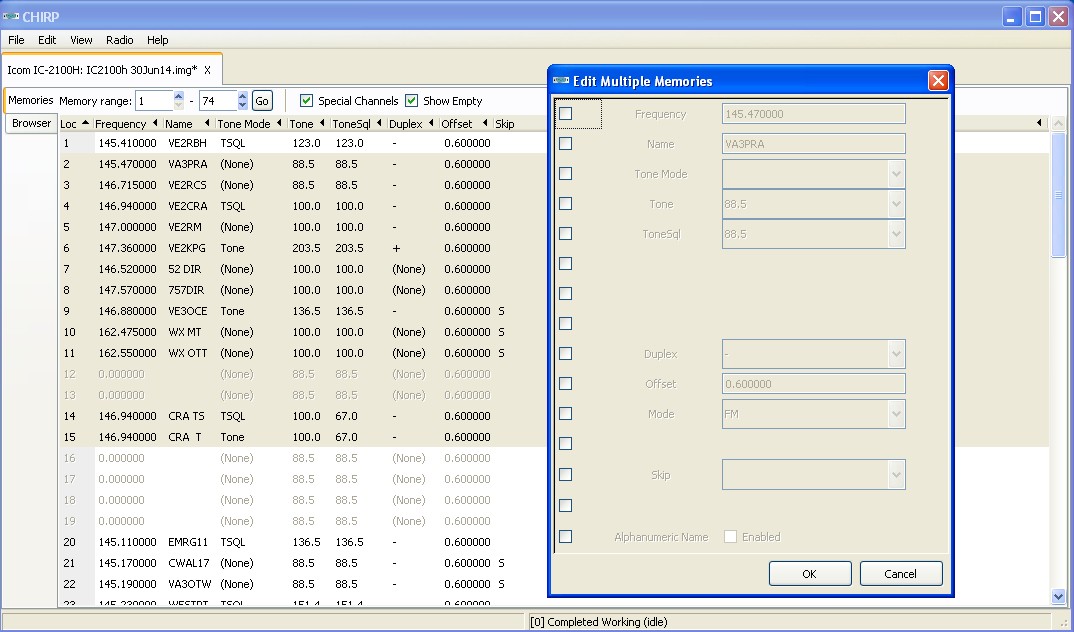

Using the multiple memories edit approach I then did a ‘post process’ change on all memories to enable the alphanumeric display, including even those that were already enabled. It worked just fine (save of course as you mentioned the blank entries). I did note as shown in the attached screen shot, that when programming multiple memories all options appear ‘ghosted’. I initially found this somewhat confusing. Some users may be inclined to believe that options are not available and give up.
Regards
Wayne
Updated by Jim Unroe over 10 years ago
Wayne,
I know it would be nice to have a tick box right next to the Name column so that it could be ticked at the same time a name was entered, that that isn't how CHIRP currently works.
The displayed columns are based on what is required for the most common radios. Any additional settings that are particular to a specific radio must be added to the right-click memory editor.
I'm sure it is possible for CHIRP to automatically enable this setting if the NAME setting was populated, but I'm not your programmer for something like that. That would require someone like Marco, Tom or even Dan to do something like that.
I'm not sure toggling it on automatically because there is a NAME is the right thing to do. I'm sure there are some that would still like to see the frequency even though the NAME is available. Otherwise there wouldn't be a toggle on the radio to switch between the two.
I have attached the patch in its current state if someone wants to expand upon it. If not, I can submit it as-is so at least the capability of enabling the AMN display will be available.
Jim KC9HI
Updated by Wayne Getchell over 10 years ago
Hi Jim
Thanks for posting the patch. I found the simplest way of enabling alpha for all newly programmed channels was to select all the channels by clicking the first then last channel then right clicking edit and use the multiple memories edit feature to enable alpha.
Ideally anytime there is data in the Chirp name column after program upload to radio it should appear on the radio’s display when the radio’s alphanumeric function is active. In this case there would be no need for a check box next to the name column, as when there is an entry in the name column, it would be assumed automatically that the alpha for that channel is enabled. I often forget what frequency I’m operating on as virtually all the time the alpha is displayed. However on the IC2100H it’s a simple matter of pressing the front panel ‘MONI/AMM’ button for a couple seconds to toggle between alpha and numeric readout for any channel.
Updated by Jim Unroe over 10 years ago
- Status changed from New to In Progress
- Assignee set to Jim Unroe
- Target version set to 0.4.1
- % Done changed from 0 to 70
- Chirp Version changed from 0.4.0 to daily
- Platform changed from Windows to All
I believe I have figured this out so I will assign myself to it.
Jim KC9HI
Updated by Wayne Getchell over 10 years ago
Hi Jim
You’ve gone well beyond the call of duty here. All scenarios work exactly as you defined! Good stuff. One interesting note and I hope this doesn’t confuse you. If it does just ignore it because all seems to be functioning perfectly. Here goes… If you have an alpha entry in Chirp but edit it and uncheck the alpha then upload the datafile to the radio, the memory displays the frequency as you would expect. If you then press the ‘MONI/AMN’ button to change the entry to alpha, because there was an alpha data entry in the datafile, the display changes to that alpha entry (neat). Now with the alpha showing for that memory, when you downloaded from the radio then edit by highlighting the memory and right clicking, that memory will show alpha active (and should because it was!). If the radio is displaying the frequency (alpha off) and the memory is downloaded to Chirp, the alpha entry is displayed in Chirp and if you highlight and right click to edit, you will see that the alpha isn’t enabled (again exactly as you would want.) Excellent!
Updated by Jim Unroe over 10 years ago
- Status changed from In Progress to Resolved
- % Done changed from 70 to 100
Wayne,
A patch has been submitted and should be available in the next daily build.
Jim KC9HI
Updated by Jim Unroe over 10 years ago
- Status changed from Resolved to Closed
Patch is now included in current daily build
