New Model #11046

closed

Baofeng M-5R

Added by Zoltan Unyatinszki 4 months ago. Updated 3 months ago.

Status:
Closed
Priority:
Normal
Assignee:
Category:
-
Target version:
Start date:
12/28/2023
Due date:
% Done:

100%

Estimated time:
Equipment Loan/Gift Offered:
No
I read the instructions above:
Yes

Description

Hi all!
I can't get my new radio to use Chirp communication... (Win10 Enterprise, Prolific2303 cable)
Older UV-5R control test OK.
Will you support the M-5R radio later?
(Congratulations on this development!!)


Files

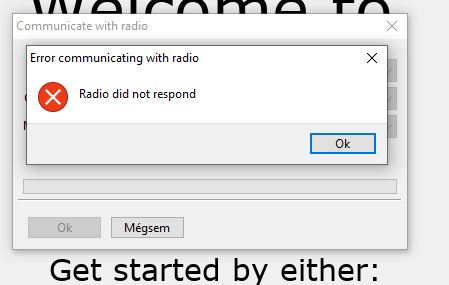

chirp_comm_error.PNG (15.1 KB) chirp_comm_error.PNG Zoltan Unyatinszki, 12/28/2023 07:50 AM
chirp_setting.PNG (13.2 KB) chirp_setting.PNG Zoltan Unyatinszki, 12/28/2023 07:50 AM

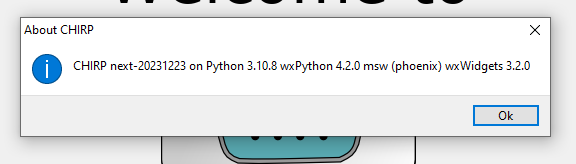

chirp_version.PNG (11.6 KB) chirp_version.PNG Zoltan Unyatinszki, 12/28/2023 07:50 AM
debug.log (2.99 KB) debug.log Zoltan Unyatinszki, 12/28/2023 07:50 AM
Baofeng_UV-5R_20231229T160651.img (6.49 KB) Baofeng_UV-5R_20231229T160651.img Zoltan Unyatinszki, 12/29/2023 08:04 AM
chirp.config (545 Bytes) chirp.config Zoltan Unyatinszki, 12/29/2023 08:04 AM
debug.log (194 KB) debug.log Zoltan Unyatinszki, 12/29/2023 08:04 AM
baofeng_wp970i_uv5rx.py (32.7 KB) baofeng_wp970i_uv5rx.py Use Vendor: Baofeng / Model: UV-5RX Jim Unroe, 01/13/2024 05:33 PM
chirp.config (967 Bytes) chirp.config Zoltan Unyatinszki, 01/14/2024 07:48 AM
debug.log (6.43 KB) debug.log Zoltan Unyatinszki, 01/14/2024 07:48 AM

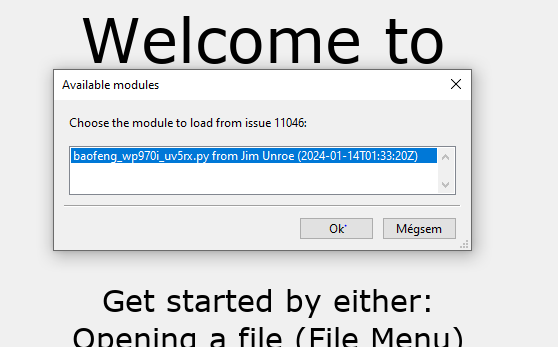

picture.PNG (20.8 KB) picture.PNG Zoltan Unyatinszki, 01/14/2024 07:48 AM
Baofeng_UV-5RX_20240114.img (8.18 KB) Baofeng_UV-5RX_20240114.img Zoltan Unyatinszki, 01/14/2024 10:33 AM
chirp.config (1.52 KB) chirp.config Zoltan Unyatinszki, 01/14/2024 10:33 AM
debug.log (93.7 KB) debug.log Zoltan Unyatinszki, 01/14/2024 10:33 AM
baofeng_wp970i_uv5rx.py (32.8 KB) baofeng_wp970i_uv5rx.py added 350-390 MHz range Jim Unroe, 01/14/2024 11:50 AM
chirp.config (1.67 KB) chirp.config Zoltan Unyatinszki, 01/16/2024 02:10 AM
Baofeng_UV-5RX_20240116.img (8.18 KB) Baofeng_UV-5RX_20240116.img Zoltan Unyatinszki, 01/16/2024 02:10 AM
debug.log (101 KB) debug.log Zoltan Unyatinszki, 01/16/2024 02:10 AM
baofeng_wp970i_uv5rx.py (32.8 KB) baofeng_wp970i_uv5rx.py Use Vendor: Baofeng / Model: 5RX Jim Unroe, 01/16/2024 01:19 PM
